| Field | Data |
|---|---|

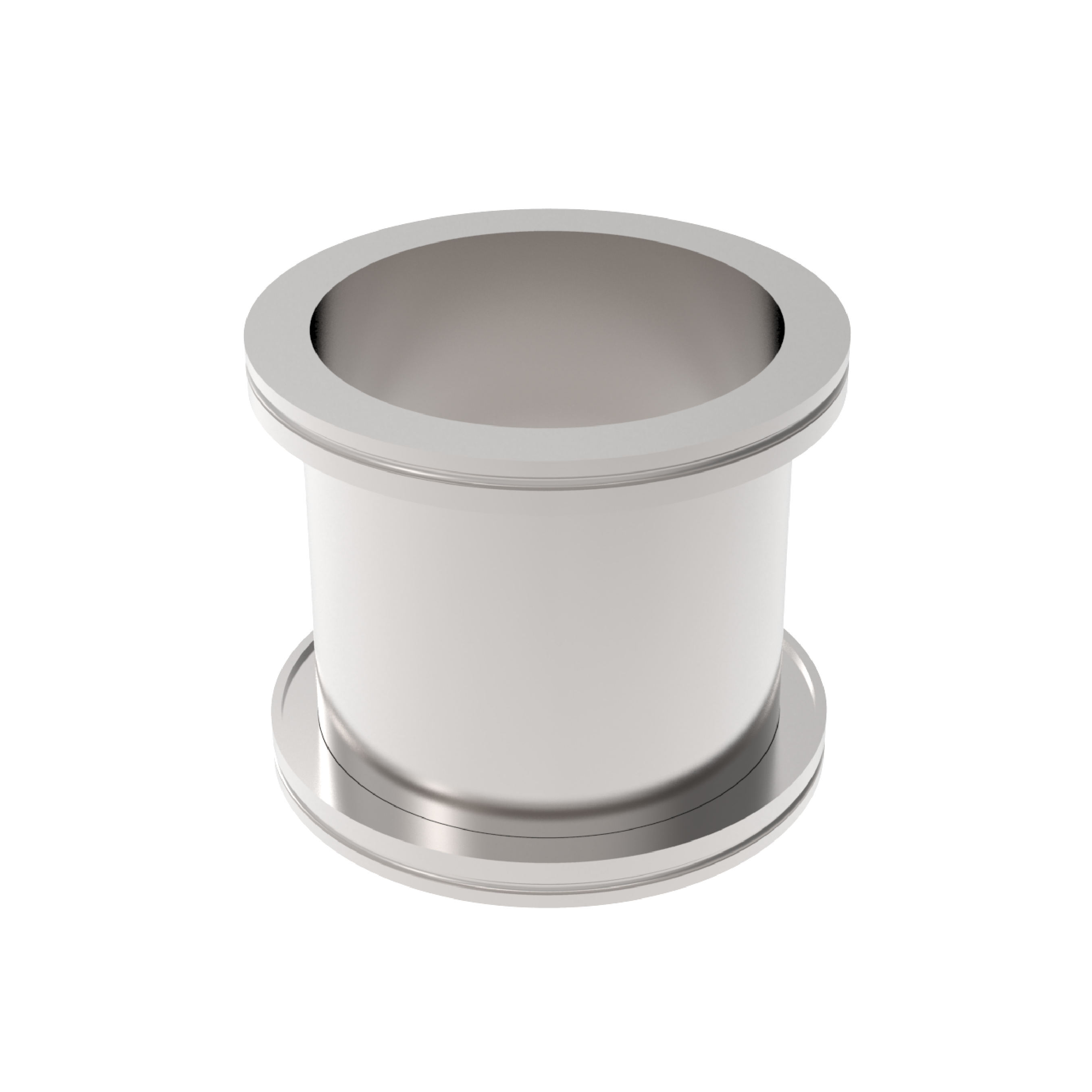

| Product Name | ISO-K Full Flange |
| System | ISO-K |
| Product Type | Full Flange |
| Function | Full flange for ISO-K vacuum connections |
| Pressure Range - Elastomer Seal | 1 × 10⁻⁸ mbar to 1.5 bar |
| Pressure Range - Metal Seal | 1 × 10⁻⁹ mbar to 1.5 bar |
| Custom Lengths | Available upon request |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Available Sizes (DN) | 63, 100, 160, 200, 250 |
| Main Dimensions | A, B |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
