ISO-KF 6-way cross in 304 or 316L stainless steel, DN10–50. Explore six-port connections, dimensions and order codes. Request a quote.
ISO KF 6 Way Cross - Image 2

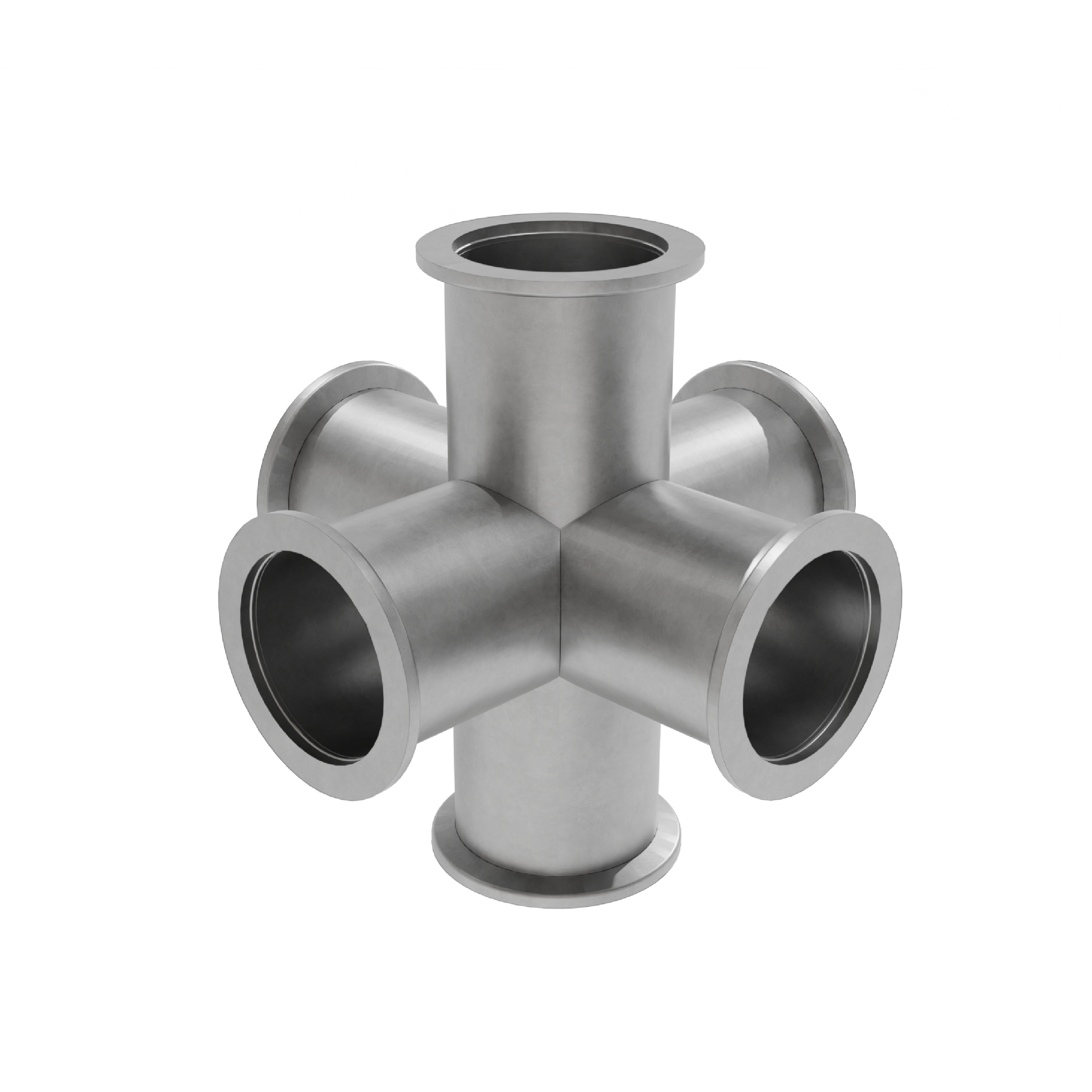

ISO KF 6 Way Cross

Categories ,

Description

The ISO-KF 6-way cross provides six flange connections for joining multiple vacuum lines and components in a multi-axis arrangement. Available in stainless steel 304 / 1.4301 and stainless steel 316L / 1.4404, each variant uses matching stainless steel grades for its flanges and tubes.

The range includes DN10, DN16, DN25, DN40 and DN50, with five sizes available in each material. Dimensions remain consistent between the two material options for the corresponding DN size.

A glass bead blasted tube surface is supplied as standard. Polished versions and custom lengths are available on request to suit specific installation requirements.

Use the tables below to compare dimensions and identify the correct order number, then request a quotation from Anadolu Vacuum for your required configuration and quantity.

Request a Quote
Field Data
Product Name ISO KF 6 Way Cross
System ISO-KF
Product Type 6-Way Cross
Connection Configuration Six flange connections
Material Options Stainless Steel 304 / 1.4301; Stainless Steel 316L / 1.4404
Flange Material SS304 / 1.4301 or SS316L / 1.4404, according to variant
Tube Material Same stainless steel grade as the flanges
Available Sizes DN10, DN16, DN25, DN40, DN50
Pressure Range 1 × 10⁻¹² mbar to ambient pressure
Temperature Range — Stainless Steel 304 −196 to +300 °C
Temperature Range — Stainless Steel 316L −196 to +350 °C
Tightness ≤ 1 × 10⁻¹⁰ mbar·L/s
Flange Rotation One rotatable flange per axis
Standard Tube Surface Glass bead blasted
Optional Tube Surface Polished, available on request
Custom Lengths Available on request
Bake-Out Temperature Up to 450 °C — applicable conditions require confirmation
Main Dimensions A, B and C
Available Variants 10
ISO-KF six-way cross, KF 6-way cross, KF six-way cross Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm) Order No.
10 60 30 10 VC1FTTU1SS010-60
16 80 40 16 VC1FTTU1SS016-80
25 100 50 24 VC1FTTU1SS025-100
40 130 65 40.5 VC1FTTU1SS040-130
50 140 70 50 VC1FTTU1SS050-140
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm) Order No.
10 60 30 10 VC1FTTU2SS010-60
16 80 40 16 VC1FTTU2SS016-80
25 100 50 24 VC1FTTU2SS025-100
40 130 65 40.5 VC1FTTU2SS040-130
50 140 70 50 VC1FTTU2SS050-140
ISO-KF six-way cross, KF 6-way cross, KF six-way cross
Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm)
10 60 30 10
16 80 40 16
25 100 50 24
40 130 65 40.5
50 140 70 50
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm)
10 60 30 10
16 80 40 16
25 100 50 24
40 130 65 40.5
50 140 70 50

Download Datasheet from here

Request CAD Model
