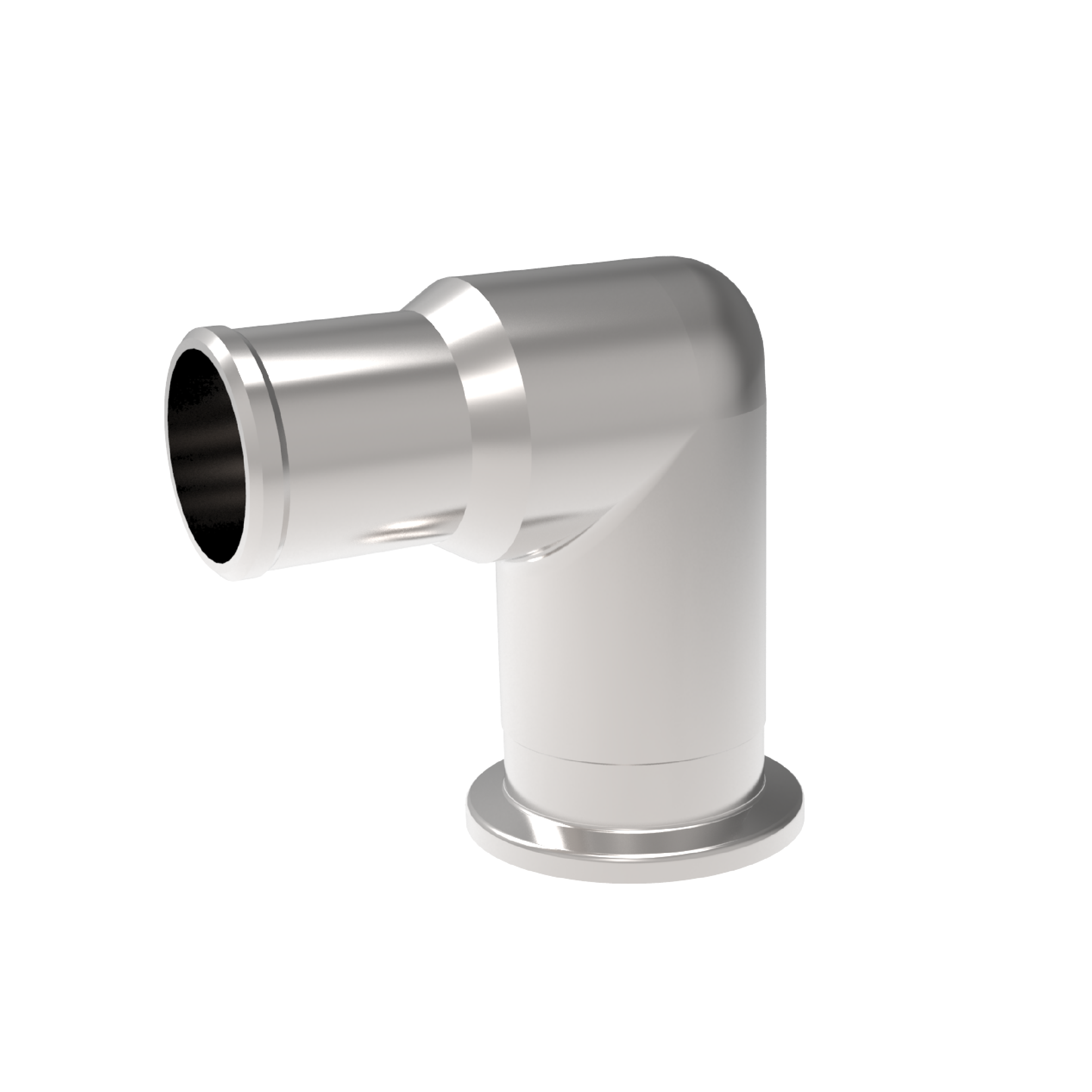

The ISO-KF 90 Elbow with Hose Adapter is designed for ISO-KF vacuum systems where a 90-degree elbow connection is required together with a hose adapter for flexible hose integration. Based on the product sheet image, it is manufactured in Aluminium EN AW-6082 T6 / 3.2315 and is intended for connecting a PVC hose or a CR sleeve. The listed temperature range for the aluminium version is -196 to 150 °C.
| Field | Data |
|---|---|
| Product Name | ISO-KF 90 Elbow with Hose Adapter |
| System | ISO-KF |
| Product Type | 90 Elbow with Hose Adapter |
| Function | 90-degree elbow with hose adapter for connecting a PVC hose or a CR sleeve |
| Material Version | Aluminium EN AW-6082 T6 / 3.2315 |
| Connection Use | For connecting a PVC hose or a CR sleeve |
| Available Sizes (DN) | 16, 25, 40 |

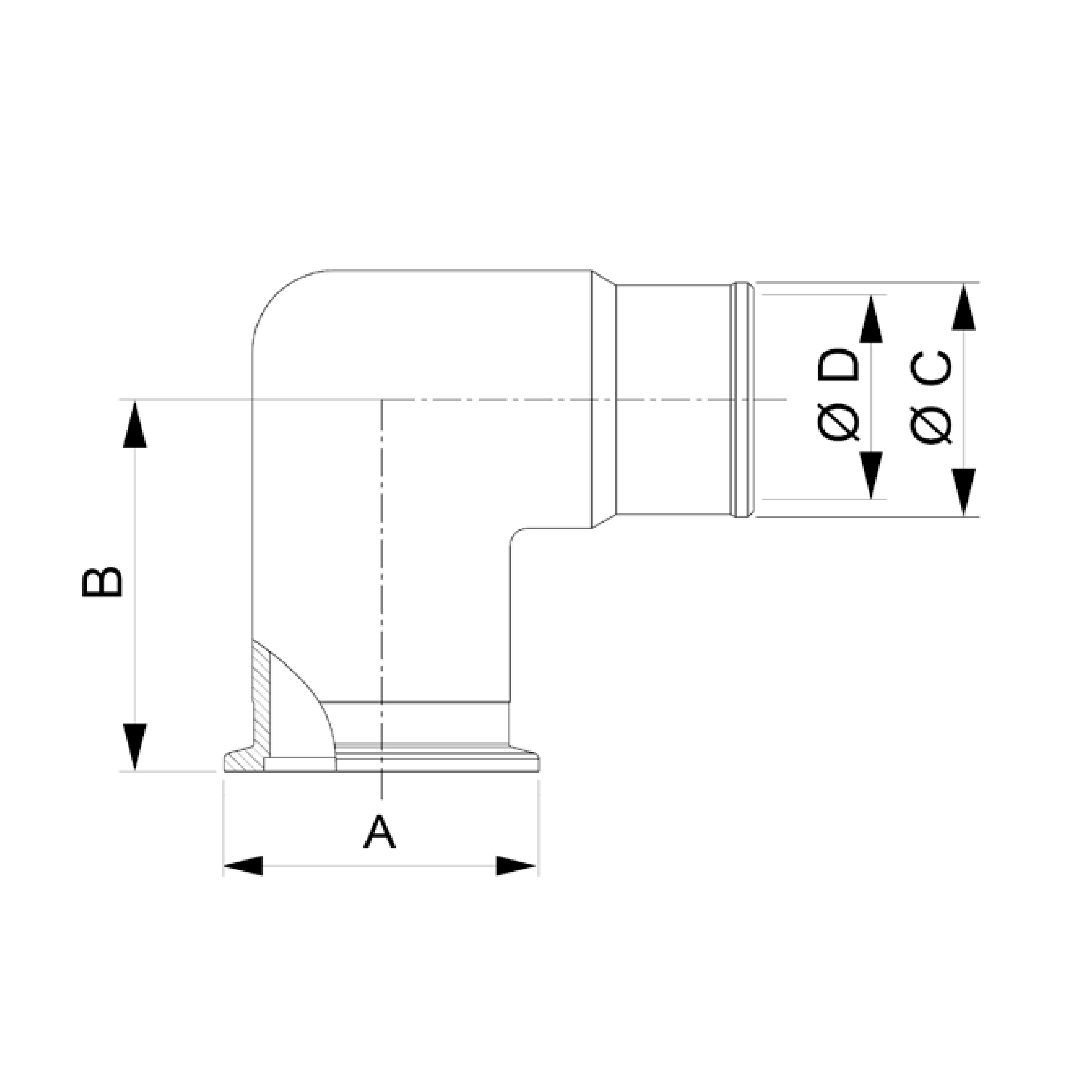

| Main Dimensions | A, B, C, D |
| Temperature Range - Aluminium EN AW-6082 T6 / 3.2315 | -196 to 150 °C |
| Size (DN) | A (mm) | B (mm) | C (mm) | D (mm) | Order No |
|---|---|---|---|---|---|
| 16 | 40 | 40 | 17 | 13 | VC1ADI1AL016-40 |
| 25 | 50 | 50 | 26 | 22 | VC1ADI1AL025-50 |
| 40 | 65 | 65 | 41 | 37 | VC1ADI1AL040-65 |
| Size (DN) | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 16 | 40 | 40 | 17 | 13 |
| 25 | 50 | 50 | 26 | 22 |
| 40 | 65 | 65 | 41 | 37 |
