ISO-KF Adapter for Pvc Hose
ISO-KF Adapter for Pvc Hose - Image 2

ISO-KF Adapter for Pvc Hose

Categories ,

Description

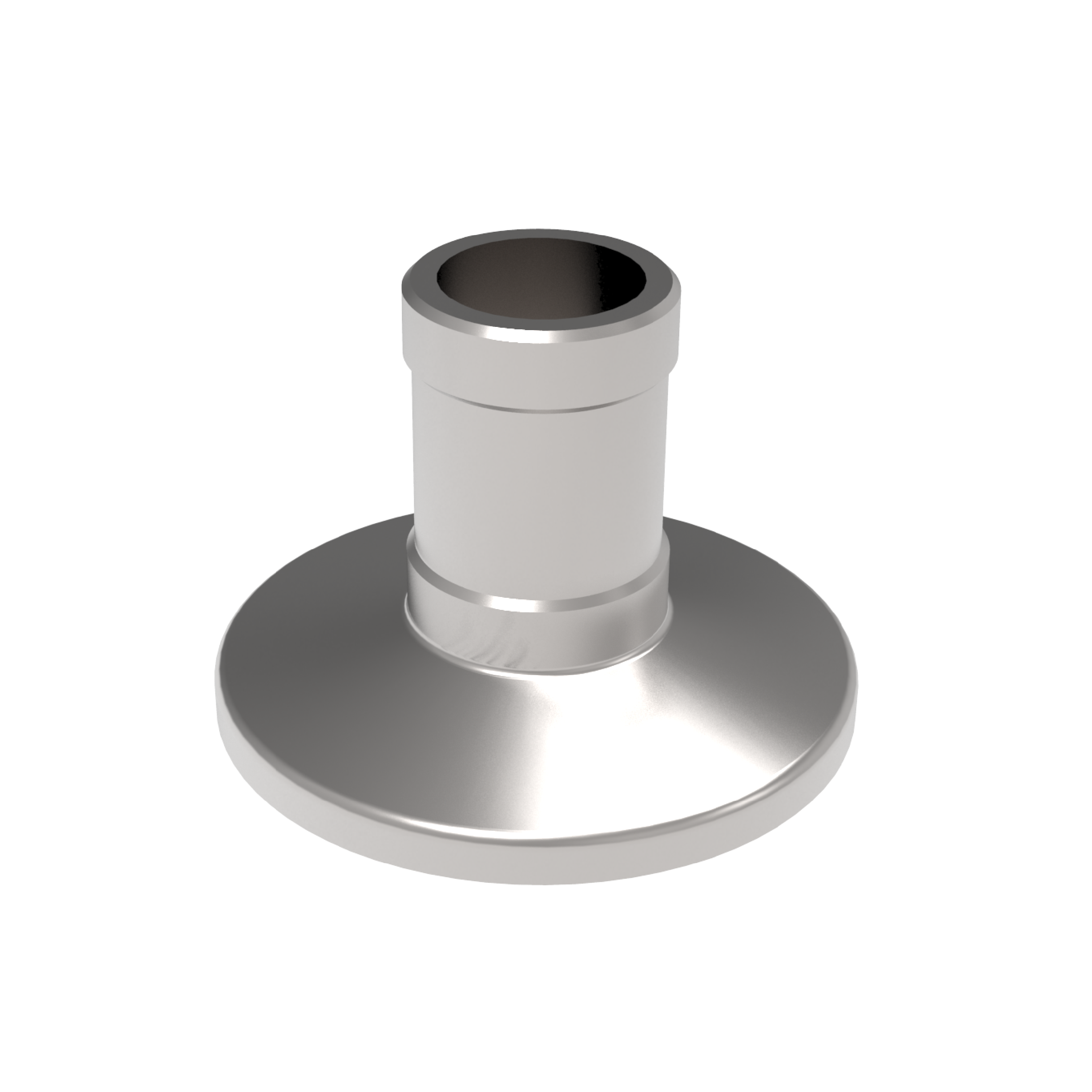

The ISO-KF Adapter for PVC Hose is designed for ISO-KF vacuum systems where a connection is required for a PVC hose with embedded spring or a CR sleeve. Based on the product sheet image, it is available in Aluminium EN AW-6082 T6 / 3.2315, Stainless Steel 304 / 1.4301, and Stainless Steel 316L / 1.4404. The product is offered in several diameter combinations depending on the hose connection geometry and system size.

Request a Quote
Field Data
Product Name ISO-KF Adapter for PVC Hose
System ISO-KF
Product Type Adapter for PVC Hose
Function For connecting a PVC hose with embedded spring or a CR sleeve
Material Versions Aluminium EN AW-6082 T6 / 3.2315, Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Sizes (DN) 10, 16, 25, 40, 50

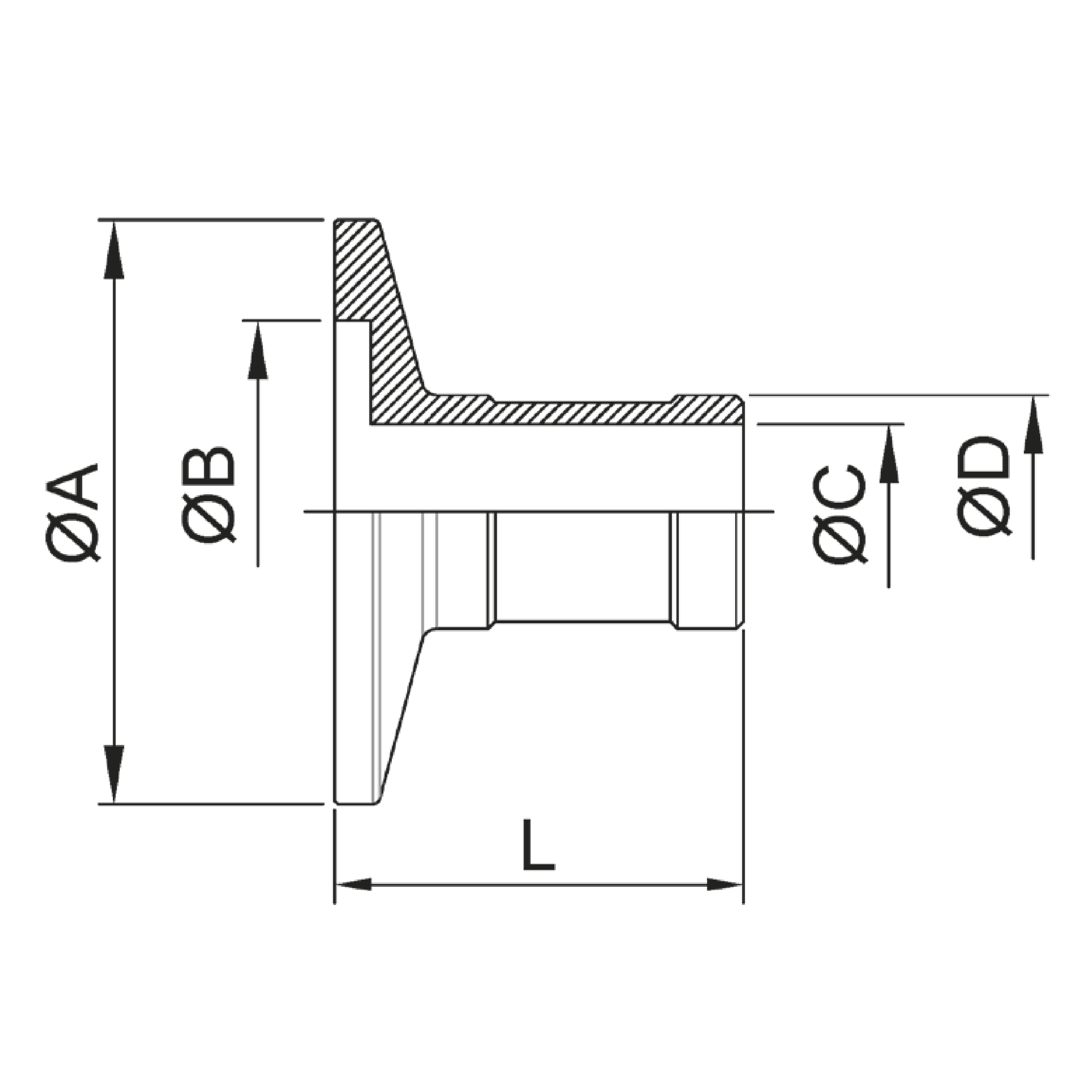

Main Dimensions A, B, C, D, L
Temperature Range - Aluminium EN AW-6082 T6 / 3.2315 -196 to 150 °C
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Aluminium EN AW-6082 T6 / 3.2315
Size (DN) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
10 30 12.2 9 14 40 VC1ADB1AL010-14-40
16 30 17.2 12 16 28 VC1ADB1AL016-16-28
16 30 17.2 16 20 40 VC1ADB1AL016-20-40
25 40 26.2 12 16 28 VC1ADB1AL025-16-28
25 40 26.2 15 20 40 VC1ADB1AL025-20-40
25 40 26.2 21 25 40 VC1ADB1AL025-25-40
40 55 41.2 40 45 32 VC1ADB1AL040-45-32
40 55 41.2 22 26 40 VC1ADB1AL040-26-40
40 55 41.2 37 41 40 VC1ADB1AL040-41-40
50 75 52.2 45 50 60 VC1ADB1AL050-50-60
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
16 30 17.2 12 16 28 VC1ADB1SS016-16-28
25 40 26.2 21 25 28 VC1ADB1SS025-25-28
40 55 41.2 40 45 32 VC1ADB1SS040-45-32
50 75 52.2 45 50 60 VC1ADB1SS050-50-60
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) C (mm) D (mm) L (mm) Order No
16 30 17.2 12 16 28 VC1ADB2SS016-16-28
25 40 26.2 21 25 28 VC1ADB2SS025-25-28
40 55 41.2 40 45 32 VC1ADB2SS040-45-32
50 75 52.2 45 50 60 VC1ADB2SS050-50-60

Aluminium EN AW-6082 T6 / 3.2315
Size (DN) A (mm) B (mm) C (mm) D (mm) L (mm)
10 30 12.2 9 14 40
16 30 17.2 12 16 28
16 30 17.2 16 20 40
25 40 26.2 12 16 28
25 40 26.2 15 20 40
25 40 26.2 21 25 40
40 55 41.2 40 45 32
40 55 41.2 22 26 40
40 55 41.2 37 41 40
50 75 52.2 45 50 60
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) C (mm) D (mm) L (mm)
16 30 17.2 12 16 28
25 40 26.2 21 25 28
40 55 41.2 40 45 32
50 75 52.2 45 50 60
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) C (mm) D (mm) L (mm)
16 30 17.2 12 16 28
25 40 26.2 21 25 28
40 55 41.2 40 45 32
50 75 52.2 45 50 60
