ISO KF Hose Nozzle

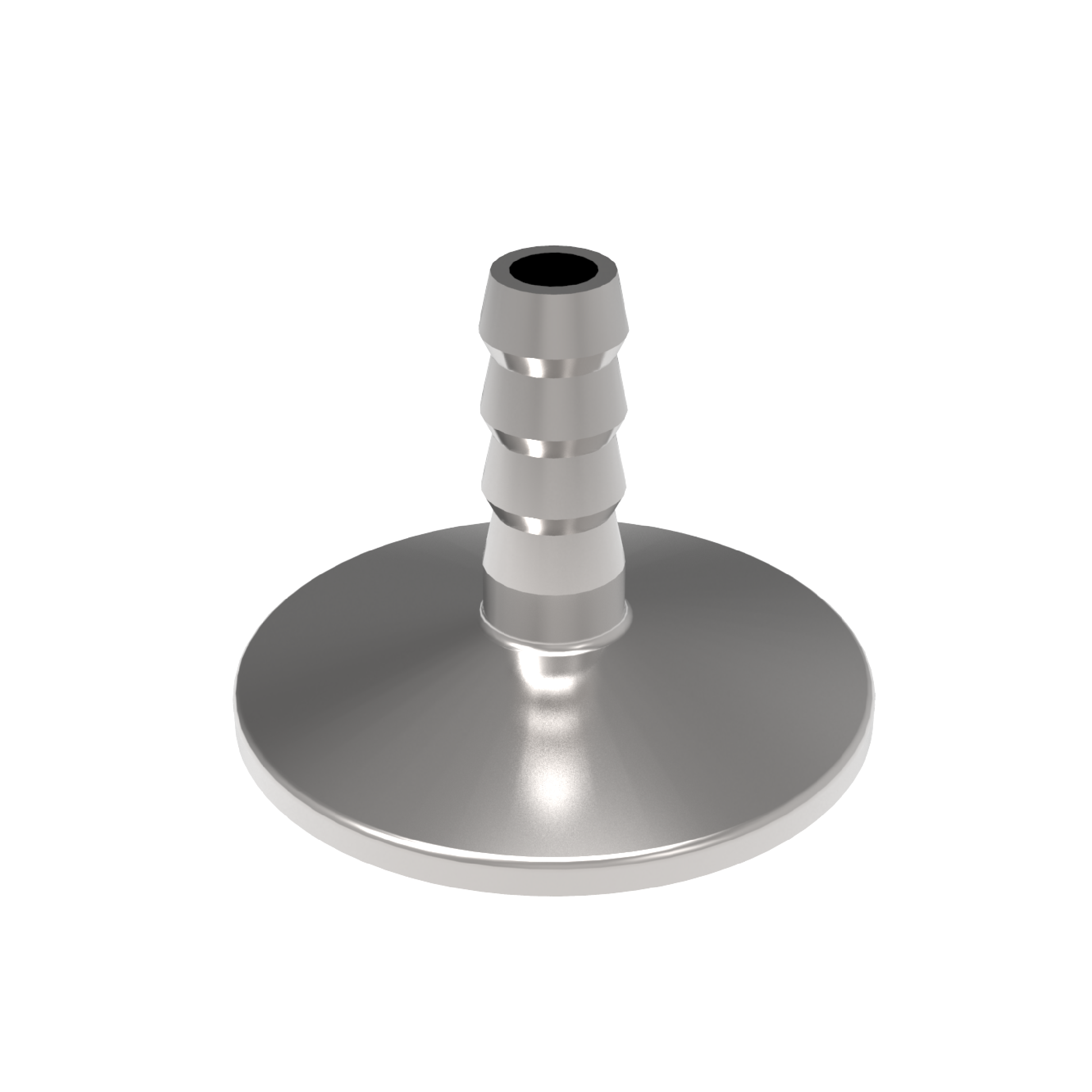

The ISO-KF Hose Nozzle is designed for ISO-KF vacuum systems where a hose-barb style connection is required for flexible hose integration. Based on the product sheet image, it is available in Aluminium EN AW-6082 T6 / 3.2315, Stainless Steel 304 / 1.4301, and Stainless Steel 316L / 1.4404. The page lists multiple diameter combinations for DN10 to DN50, making it suitable for different hose connection needs in compact vacuum assemblies.

Aluminium EN AW-6082 T6 / 3.2315

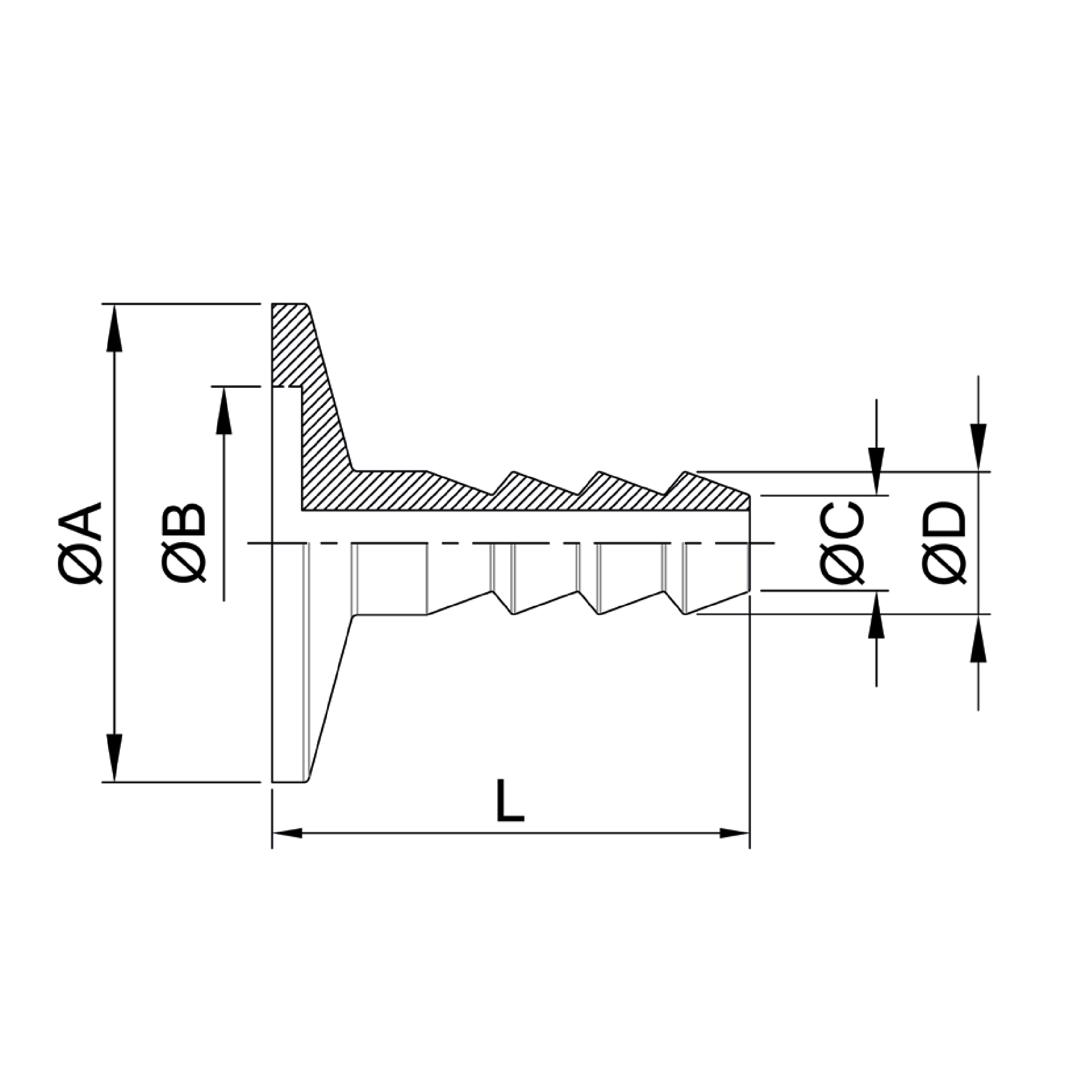

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	Order No
10	30	12.2	4	8	40	VC1ADA1AL010-8-40
10	30	12.2	7	12	40	VC1ADA1AL010-12-40
16	30	17.2	4	8	40	VC1ADA1AL016-8-40
16	30	17.2	7	12	40	VC1ADA1AL016-12-40
25	40	26.2	4	8	40	VC1ADA1AL025-8-40
25	40	26.2	7	12	40	VC1ADA1AL025-8-40
25	40	26.2	12	16	40	VC1ADA1AL025-16-40
40	55	41.2	4	8	40	VC1ADA1AL040-8-40
40	55	41.2	7	12	40	VC1ADA1AL040-12-40
40	55	41.2	12	16	40	VC1ADA1AL040-16-40
40	55	41.2	16	20	40	VC1ADA1AL040-20-40
50	75	52.2	4	8	40	VC1ADA1AL050-8-40
50	75	52.2	7	12	40	VC1ADA1AL050-12-40
50	75	52.2	12	16	40	VC1ADA1AL050-16-40
50	75	52.2	16	20	40	VC1ADA1AL050-20-40
50	75	52.2	21	25	40	VC1ADA1AL050-25-40

Stainless Steel 304 / 1.4301

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	Order No
10	30	12.2	4	8	40	VC1ADA1SS010-8-40
10	30	12.2	7	12	40	VC1ADA1SS010-12-40
16	30	17.2	4	8	40	VC1ADA1SS016-8-40
16	30	17.2	7	12	40	VC1ADA1SS016-12-40
25	40	26.2	4	8	40	VC1ADA1SS025-8-40
25	40	26.2	7	12	40	VC1ADA1SS025-12-40
25	40	26.2	12	16	40	VC1ADA1SS025-16-40
40	55	41.2	4	8	40	VC1ADA1SS040-8-40
40	55	41.2	7	12	40	VC1ADA1SS040-12-40
40	55	41.2	12	16	40	VC1ADA1SS040-16-40
40	55	41.2	16	20	40	VC1ADA1SS040-20-40
50	75	52.2	4	8	40	VC1ADA1SS050-8-40
50	75	52.2	7	12	40	VC1ADA1SS050-12-40
50	75	52.2	12	16	40	VC1ADA1SS050-16-40
50	75	52.2	16	20	40	VC1ADA1SS050-20-40
50	75	52.2	21	25	40	VC1ADA1SS050-25-40

Stainless Steel 316L / 1.4404

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	Order No
10	30	12.2	4	8	40	VC1ADA2SS010-8-40
10	30	12.2	7	12	40	VC1ADA2SS010-12-40
16	30	17.2	4	8	40	VC1ADA2SS016-8-40
16	30	17.2	7	12	40	VC1ADA2SS016-12-40
25	40	26.2	4	8	40	VC1ADA2SS025-8-40
25	40	26.2	7	12	40	VC1ADA2SS025-12-40
25	40	26.2	12	16	40	VC1ADA2SS025-16-40
40	55	41.2	4	8	40	VC1ADA2SS040-8-40
40	55	41.2	7	12	40	VC1ADA2SS040-12-40
40	55	41.2	12	16	40	VC1ADA2SS040-16-40
40	55	41.2	16	20	40	VC1ADA2SS040-20-40
50	75	52.2	4	8	40	VC1ADA2SS050-8-40
50	75	52.2	7	12	40	VC1ADA2SS050-12-40
50	75	52.2	12	16	40	VC1ADA2SS050-16-40
50	75	52.2	16	20	40	VC1ADA2SS050-20-40
50	75	52.2	21	25	40	VC1ADA2SS050-25-40

Aluminium EN AW-6082 T6 / 3.2315

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)
10	30	12.2	4	8	40
10	30	12.2	7	12	40
16	30	17.2	4	8	40
16	30	17.2	7	12	40
25	40	26.2	4	8	40
25	40	26.2	7	12	40
25	40	26.2	12	16	40
40	55	41.2	4	8	40
40	55	41.2	7	12	40
40	55	41.2	12	16	40
40	55	41.2	16	20	40
50	75	52.2	4	8	40
50	75	52.2	7	12	40
50	75	52.2	12	16	40
50	75	52.2	16	20	40
50	75	52.2	21	25	40

Stainless Steel 304 / 1.4301

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)
10	30	12.2	4	8	40
10	30	12.2	7	12	40
16	30	17.2	4	8	40
16	30	17.2	7	12	40
25	40	26.2	4	8	40
25	40	26.2	7	12	40
25	40	26.2	12	16	40
40	55	41.2	4	8	40
40	55	41.2	7	12	40
40	55	41.2	12	16	40
40	55	41.2	16	20	40
50	75	52.2	4	8	40
50	75	52.2	7	12	40
50	75	52.2	12	16	40
50	75	52.2	16	20	40
50	75	52.2	21	25	40

Stainless Steel 316L / 1.4404

Size (DN)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)
10	30	12.2	4	8	40
10	30	12.2	7	12	40
16	30	17.2	4	8	40
16	30	17.2	7	12	40
25	40	26.2	4	8	40
25	40	26.2	7	12	40
25	40	26.2	12	16	40
40	55	41.2	4	8	40
40	55	41.2	7	12	40
40	55	41.2	12	16	40
40	55	41.2	16	20	40
50	75	52.2	4	8	40
50	75	52.2	7	12	40
50	75	52.2	12	16	40
50	75	52.2	16	20	40
50	75	52.2	21	25	40
