The ISO-KF O-ring is an elastomer sealing component for ISO-KF vacuum connections. Available in FKM, CR, NBR, EPDM and VMQ silicone, the range covers DN10, DN16, DN20, DN25, DN32, DN40 and DN50.
All listed variants feature a 5 mm cross-section diameter. The inside diameter varies with the DN size, while the dimensions for each size remain consistent across all five materials.
Choose from 35 variants, each with a dedicated order number. Compare the material options and dimensions below, then request a quotation for the required size, elastomer and quantity.
| Field | Data |
|---|
| Product Name | ISO-KF O-ring |
| System | ISO-KF |
| Product Type | Elastomer O-Ring |
| Available Materials | FKM, CR, NBR, EPDM, VMQ silicone |
| Available Sizes | DN10, DN16, DN20, DN25, DN32, DN40, DN50 |

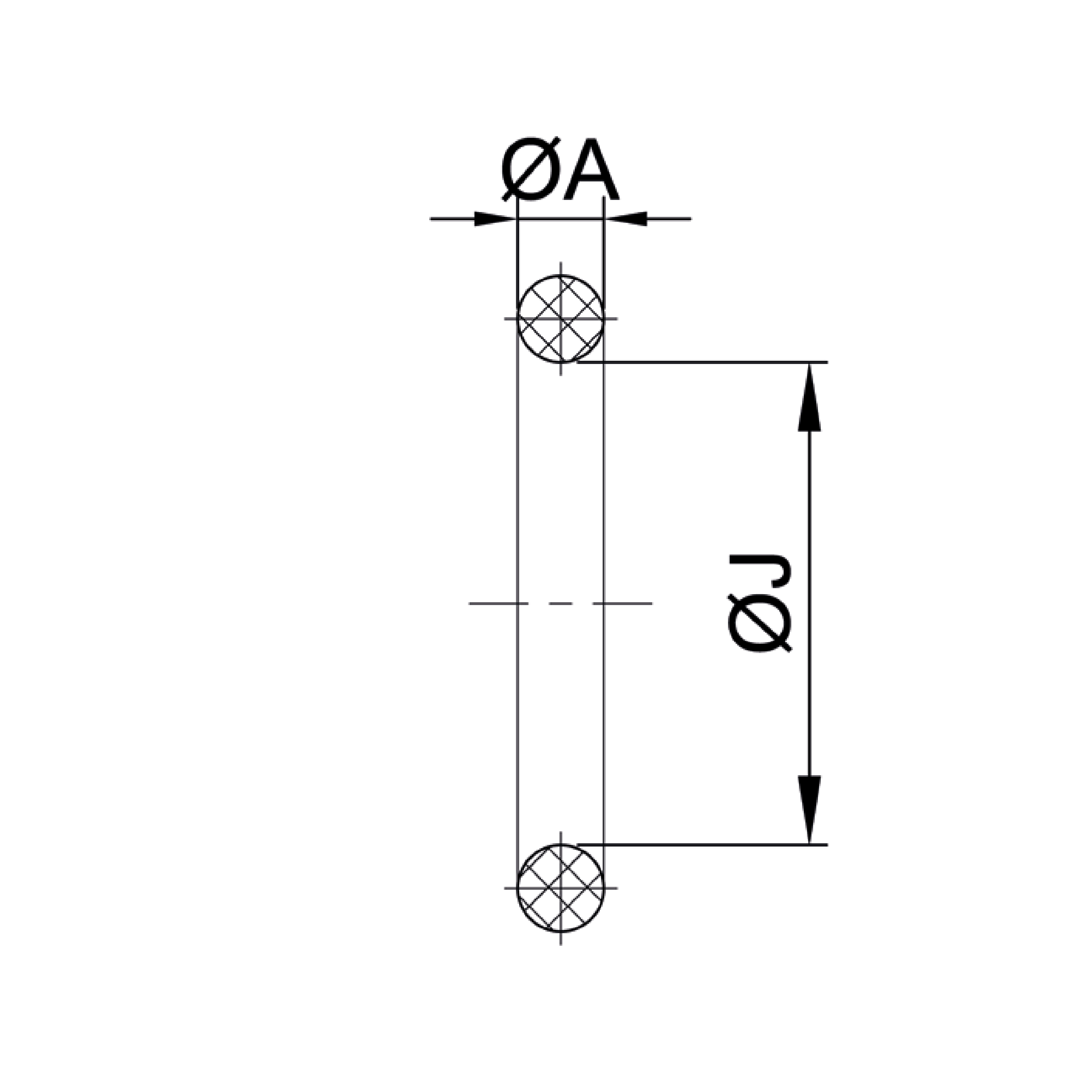

| Inside Diameter | J, shown as ØJ in the drawing |
| Cross-Section Diameter | ØA = 5 mm |
| Temperature Range — FKM | −15 to +200 °C |
| Temperature Range — CR | −40 to +100 °C |
| Temperature Range — NBR | −25 to +120 °C |
| Temperature Range — EPDM / VMQ | Confirm for the selected elastomer compound |
| Available Variants | 35 |
FKM| Size (DN) | J (mm) | ØA (mm) | Order No. |
|---|---|---|---|
| 10 | 15 | 5 | VCA07A1EL010 |
| 16 | 18 | 5 | VCA07A1EL016 |
| 20 | 24 | 5 | VCA07A1EL020 |
| 25 | 28 | 5 | VCA07A1EL025 |
| 32 | 35 | 5 | VCA07A1EL032 |
| 40 | 42 | 5 | VCA07A1EL040 |
| 50 | 55 | 5 | VCA07A1EL050 |
| Size (DN) | J (mm) | ØA (mm) | Order No. |
|---|---|---|---|
| 10 | 15 | 5 | VCA07A2EL010 |
| 16 | 18 | 5 | VCA07A2EL016 |
| 20 | 24 | 5 | VCA07A2EL020 |
| 25 | 28 | 5 | VCA07A2EL025 |
| 32 | 35 | 5 | VCA07A2EL032 |
| 40 | 42 | 5 | VCA07A2EL040 |
| 50 | 55 | 5 | VCA07A2EL050 |
| Size (DN) | J (mm) | ØA (mm) | Order No. |
|---|---|---|---|
| 10 | 15 | 5 | VCA07A3EL010 |
| 16 | 18 | 5 | VCA07A3EL016 |
| 20 | 24 | 5 | VCA07A3EL020 |
| 25 | 28 | 5 | VCA07A3EL025 |
| 32 | 35 | 5 | VCA07A3EL032 |
| 40 | 42 | 5 | VCA07A3EL040 |
| 50 | 55 | 5 | VCA07A3EL050 |
| Size (DN) | J (mm) | ØA (mm) | Order No. |
|---|---|---|---|
| 10 | 15 | 5 | VCA07A4EL010 |
| 16 | 18 | 5 | VCA07A4EL016 |
| 20 | 24 | 5 | VCA07A4EL020 |
| 25 | 28 | 5 | VCA07A4EL025 |
| 32 | 35 | 5 | VCA07A4EL032 |
| 40 | 42 | 5 | VCA07A4EL040 |
| 50 | 55 | 5 | VCA07A4EL050 |
| Size (DN) | J (mm) | ØA (mm) | Order No. |
|---|---|---|---|
| 10 | 15 | 5 | VCA07A5EL010 |
| 16 | 18 | 5 | VCA07A5EL016 |
| 20 | 24 | 5 | VCA07A5EL020 |
| 25 | 28 | 5 | VCA07A5EL025 |
| 32 | 35 | 5 | VCA07A5EL032 |
| 40 | 42 | 5 | VCA07A5EL040 |
| 50 | 55 | 5 | VCA07A5EL050 |
| Size (DN) | J (mm) | ØA (mm) |
|---|---|---|
| 10 | 15 | 5 |
| 16 | 18 | 5 |
| 20 | 24 | 5 |
| 25 | 28 | 5 |
| 32 | 35 | 5 |
| 40 | 42 | 5 |
| 50 | 55 | 5 |
| Size (DN) | J (mm) | ØA (mm) |
|---|---|---|
| 10 | 15 | 5 |
| 16 | 18 | 5 |
| 20 | 24 | 5 |
| 25 | 28 | 5 |
| 32 | 35 | 5 |
| 40 | 42 | 5 |
| 50 | 55 | 5 |
| Size (DN) | J (mm) | ØA (mm) |
|---|---|---|
| 10 | 15 | 5 |
| 16 | 18 | 5 |
| 20 | 24 | 5 |
| 25 | 28 | 5 |
| 32 | 35 | 5 |
| 40 | 42 | 5 |
| 50 | 55 | 5 |
| Size (DN) | J (mm) | ØA (mm) |
|---|---|---|
| 10 | 15 | 5 |
| 16 | 18 | 5 |
| 20 | 24 | 5 |
| 25 | 28 | 5 |
| 32 | 35 | 5 |
| 40 | 42 | 5 |
| 50 | 55 | 5 |
| Size (DN) | J (mm) | ØA (mm) |
|---|---|---|
| 10 | 15 | 5 |
| 16 | 18 | 5 |
| 20 | 24 | 5 |
| 25 | 28 | 5 |
| 32 | 35 | 5 |
| 40 | 42 | 5 |
| 50 | 55 | 5 |
Download Datasheet from here
