ISO KF 4 Way Cross

Categories ,

Description

This ISO-KF 4 way cross connects four vacuum lines in one plane. The four-port cross has 90° branches. All ports share the same nominal size.

Choose stainless steel 304 or 316L in DN10, DN16, DN25, DN40 or DN50.

Request a quote with your required DN, material and quantity.

Request a Quote
Field Data
Product Name ISO-KF 4 Way Cross
System ISO-KF
Product Type 4 Way Cross
Function Four-way cross connection for vacuum line distribution
Pressure Range - Elastomer Seal 1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Metal Seal 1 × 10⁻⁹ mbar to 500 mbar over pressure
Material Versions Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Sizes (DN) 10, 16, 25, 40, 50

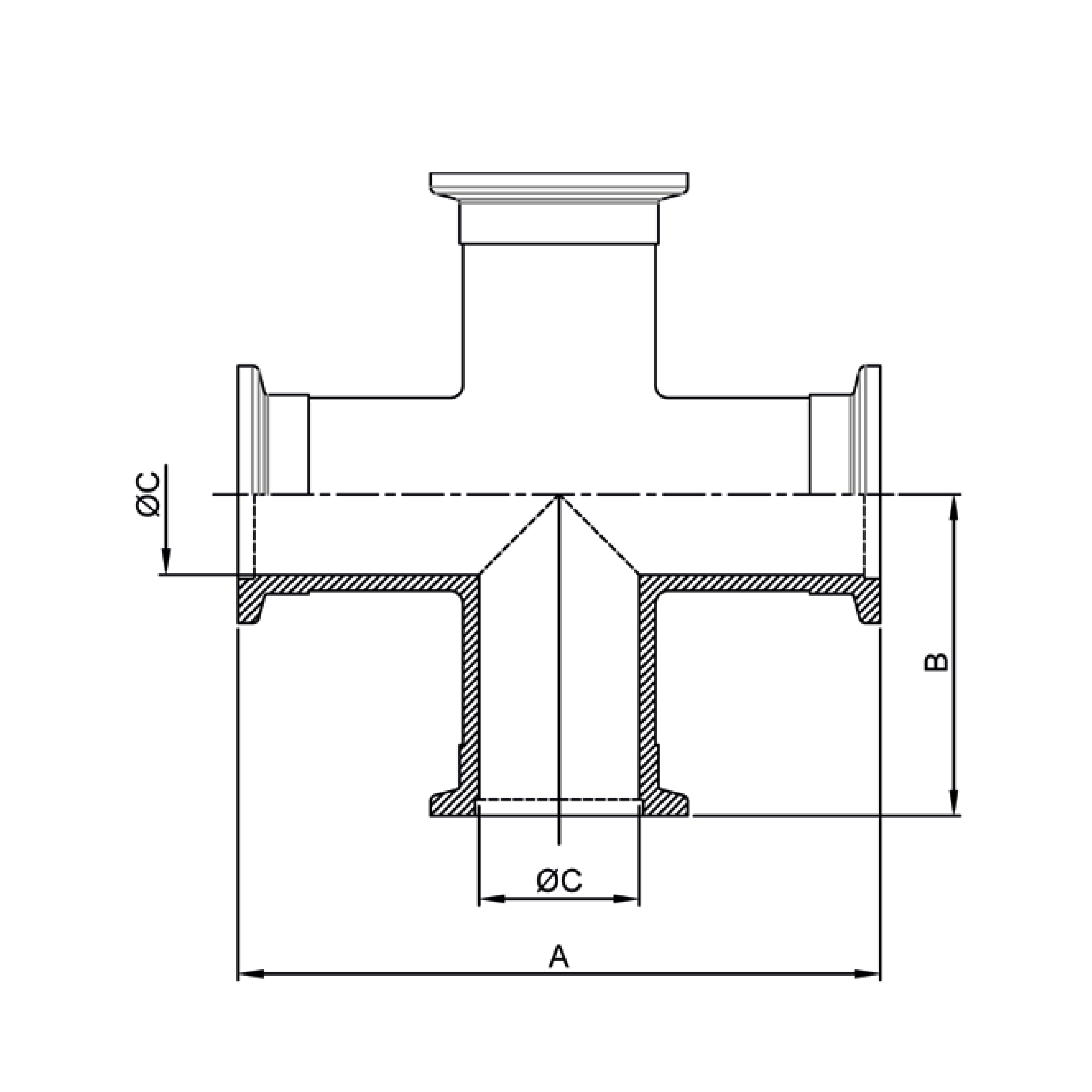

Main Dimensions A, B, C
Temperature Range - Stainless Steel 304 / 1.4301 -196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404 -196 to 350 °C
Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) C (mm) Order No
10 60 30 10 VC1FTN1SS010-60
16 80 40 16 VC1FTN1SS016-80
25 100 50 24 VC1FTN1SS025-100
40 130 65 40.5 VC1FTN1SS040-130
50 140 70 50 VC1FTN1SS050-140
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) C (mm) Order No
10 60 30 10 VC1FTN2SS010-60
16 80 40 16 VC1FTN2SS016-80
25 100 50 24 VC1FTN2SS025-100
40 130 65 40.5 VC1FTN2SS040-130
50 140 70 50 VC1FTN2SS050-140

Stainless Steel 304 / 1.4301
Size (DN) A (mm) B (mm) C (mm)
10 60 30 10
16 80 40 16
25 100 50 24
40 130 65 40.5
50 140 70 50
Stainless Steel 316L / 1.4404
Size (DN) A (mm) B (mm) C (mm)
10 60 30 10
16 80 40 16
25 100 50 24
40 130 65 40.5
50 140 70 50

Download Datasheet from here

Request CAD Model
