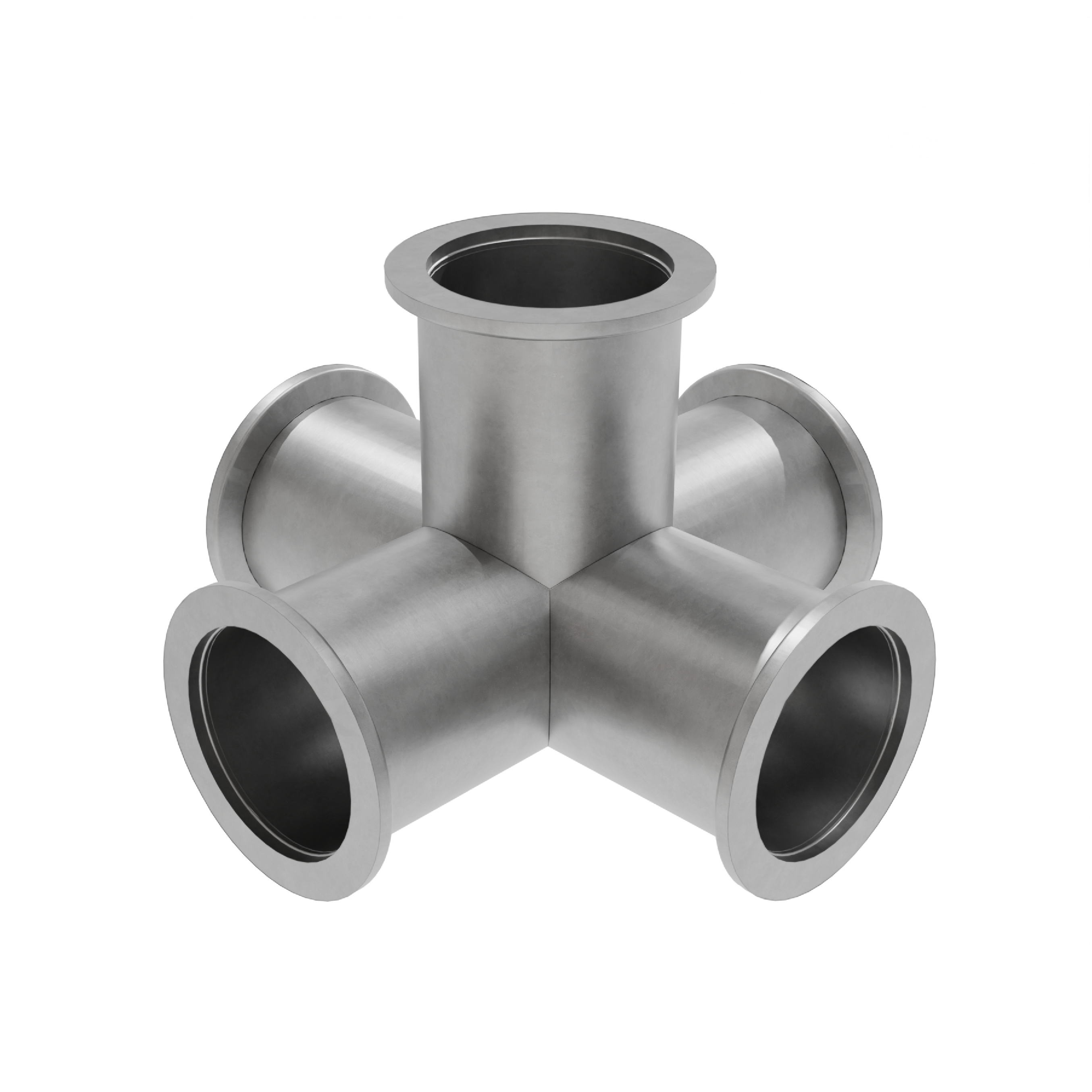

ISO KF 5 Way Cross

Categories ,

Description

The ISO-KF 5-way cross provides five flange connections for connecting multiple components within a vacuum system. It is available in stainless steel 304 / 1.4301 and stainless steel 316L / 1.4404, with matching flange and tube materials for each variant.

Choose from DN10, DN16, DN25, DN40 and DN50. Both material options share the dimensions listed for each size, with a dedicated order number identifying every configuration.

The standard tube surface is glass bead blasted, with a polished version available on request. Custom lengths are also available to suit installation requirements.

Compare the specifications, dimensions and order numbers below, then request a quotation from Anadolu Vacuum for your selected material, size and quantity.

Request a Quote
Field Data
Product Name ISO KF 5 Way Cross
System ISO-KF
Product Type 5-Way Cross
Connection Configuration Five flange connections
Material Options Stainless Steel 304 / 1.4301; Stainless Steel 316L / 1.4404
Flange Material SS304 / 1.4301 or SS316L / 1.4404, according to variant
Tube Material Same stainless steel grade as the flanges
Available Sizes DN10, DN16, DN25, DN40, DN50
Pressure Range 1 × 10⁻¹² mbar to ambient pressure
Temperature Range — Stainless Steel 304 −196 to +300 °C
Temperature Range — Stainless Steel 316L −196 to +350 °C
Tightness ≤ 1 × 10⁻¹⁰ mbar·L/s
Flange Rotation One rotatable flange per axis
Standard Tube Surface Glass bead blasted
Optional Tube Surface Polished, available on request
Custom Lengths Available on request
Bake-Out Temperature Up to 450 °C — applicable conditions require confirmation
Main Dimensions A, B and C
Available Variants 10
ISO-KF five-way cross, KF 5-way cross, KF five-way cross
Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm) Order No.
10 60 30 10 VC1FTT1SS010-60
16 80 40 16 VC1FTT1SS016-80
25 100 50 24 VC1FTT1SS025-100
40 130 65 40.5 VC1FTT1SS040-130
50 140 70 50 VC1FTT1SS050-140
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm) Order No.
10 60 30 10 VC1FTT2SS010-60
16 80 40 16 VC1FTT2SS016-80
25 100 50 24 VC1FTT2SS025-100
40 130 65 40.5 VC1FTT2SS040-130
50 140 70 50 VC1FTT2SS050-140
ISO-KF five-way cross, KF 5-way cross, KF five-way cross
Stainless Steel 304 / 1.4301
Flange Size (DN) A (mm) B (mm) C (mm)
10 60 30 10
16 80 40 16
25 100 50 24
40 130 65 40.5
50 140 70 50
Stainless Steel 316L / 1.4404
Flange Size (DN) A (mm) B (mm) C (mm)
10 60 30 10
16 80 40 16
25 100 50 24
40 130 65 40.5
50 140 70 50
