| Field | Data |
|---|---|

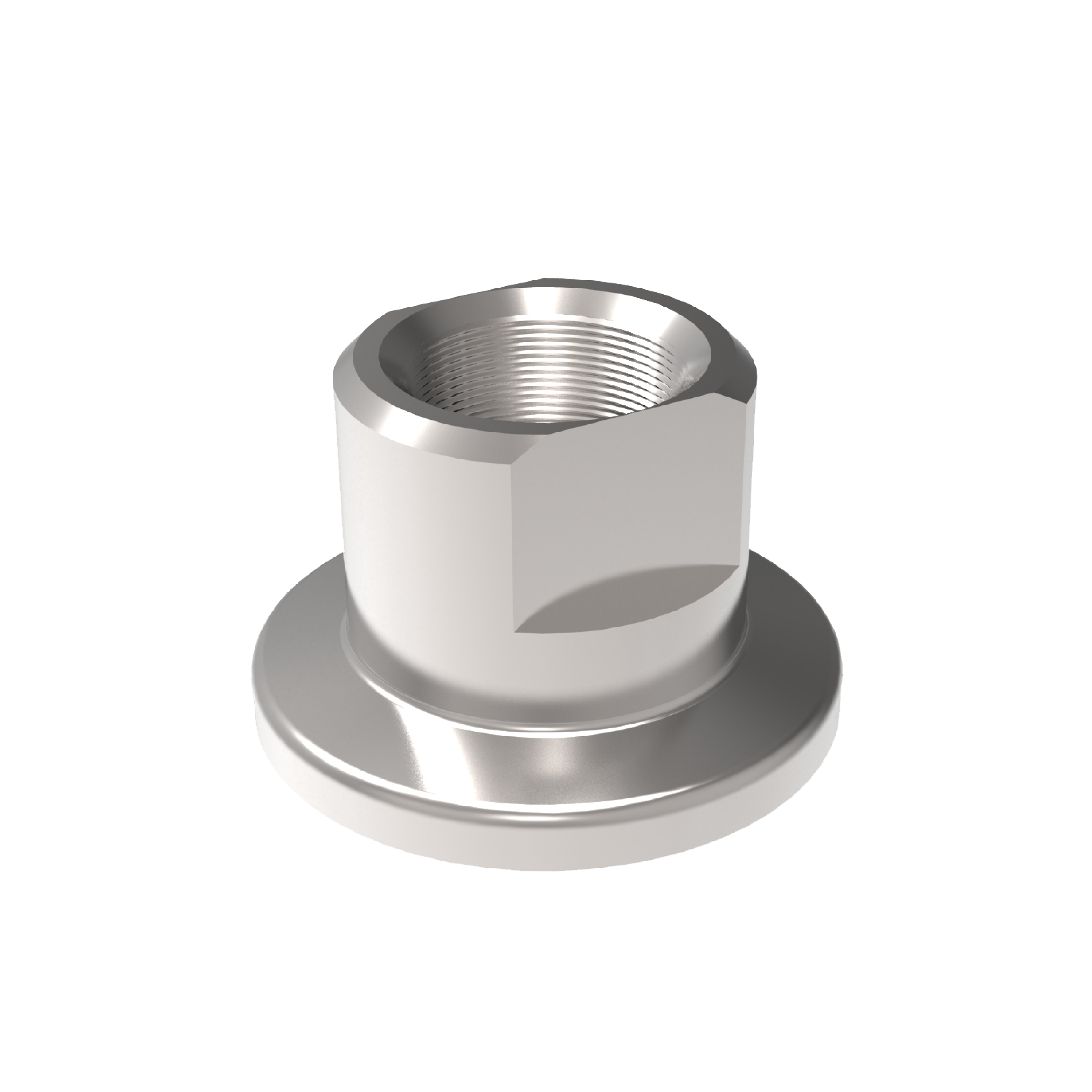

| Product Name | ISO-KF Flange With NPT Thread Female |
| System | ISO-KF |
| Product Type | Flange With NPT Thread Female |
| Connection Type | Female NPT thread |
| Material Versions | Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404 |
| Pressure Range | 1 × 10⁻⁸ mbar to 500 mbar |
| O-Ring Material | FKM |
| O-Ring Temperature Range | -15 to 150 °C |
| Catalog Note | Consider O-ring temperature ranges |
| Available Sizes (DN) | 16, 25 |
| Available Thread Options | NPT 1/8, NPT 1/4 |

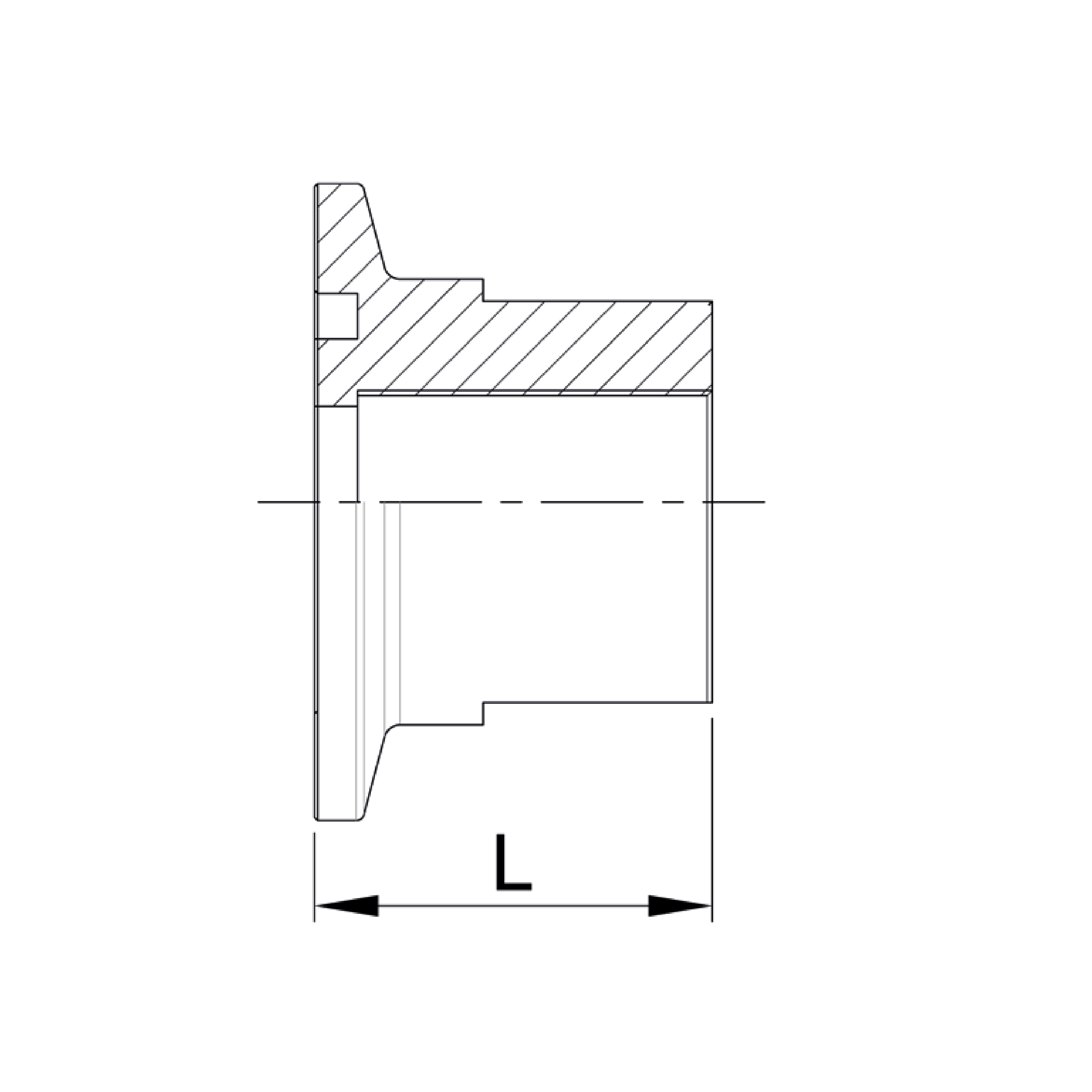

| Main Dimensions | L, Thread |
| Temperature Range - Stainless Steel 304 / 1.4301 | -196 to 300 °C |
| Temperature Range - Stainless Steel 316L / 1.4404 | -196 to 350 °C |
