| Field | Data |
|---|---|
| Product Name | ISO-KF Flange with Pipe Thread Male and FKM Seal |
| System | ISO-KF |
| Product Type | Flange with Male Pipe Thread and FKM Seal |
| Connection Configuration | ISO-KF flange × male G pipe thread |
| Pipe Material Options | Stainless Steel 304 / 1.4301; Stainless Steel 316L / 1.4404 |
| O-Ring Material | FKM |
| Thread Gender | Male |
| Thread Designations | G3/8, G1/2, G3/4, G1, G1.5 |
| Available Flange Sizes | DN10, DN16, DN25, DN40 |
| Pressure Range | 1 × 10⁻⁸ hPa to 500 hPa |
| Temperature Range — Product with FKM Seal | −15 to +150 °C |
| Temperature Range — Stainless Steel 304 Material | −196 to +300 °C |
| Temperature Range — Stainless Steel 316L Material | −196 to +350 °C |
| Temperature Note | Consider the O-ring temperature limits |

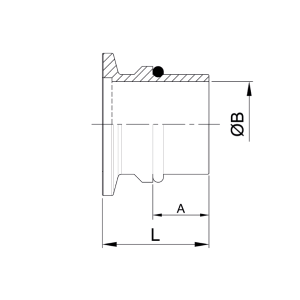

| Main Dimensions | A, B and L |
| Overall Lengths | 35, 45 and 50 mm, depending on variant |
| Available Variants | 10 |
