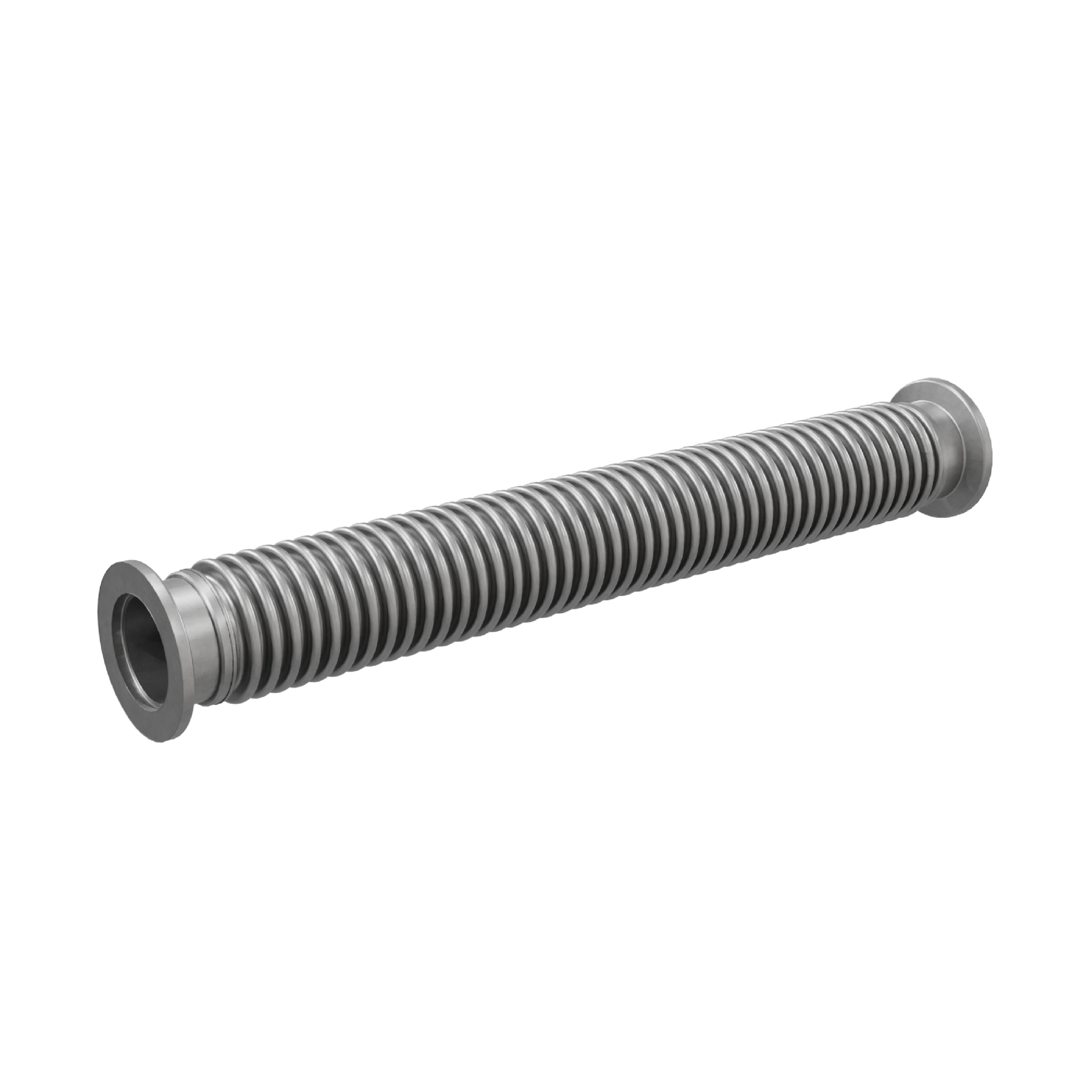

ISO-KF Thin Wall Flexible Hose for Vacuum Systems

Field	Data
Product Name	ISO-KF Flexible Hose Thin Wall
System	ISO-KF
Product Type	Thin Wall Flexible Hose
Construction	Corrugated hose with ISO-KF flange connections
Material Options	Stainless Steel 304 / 1.4301; Stainless Steel 316L / 1.4404
Available Sizes	DN16, DN25, DN40, DN50
Standard Length Options	250, 500, 750, 1000 and 1500 mm
Flange Connection Length	15 mm
Custom Lengths	Available on request
Pressure Range	1 × 10⁻⁸ mbar to 500 mbar
Temperature Range — Stainless Steel 304	−196 to +300 °C
Temperature Range — Stainless Steel 316L	−196 to +350 °C
Bend-Radius Data	Separate values for single movement and repeated movement

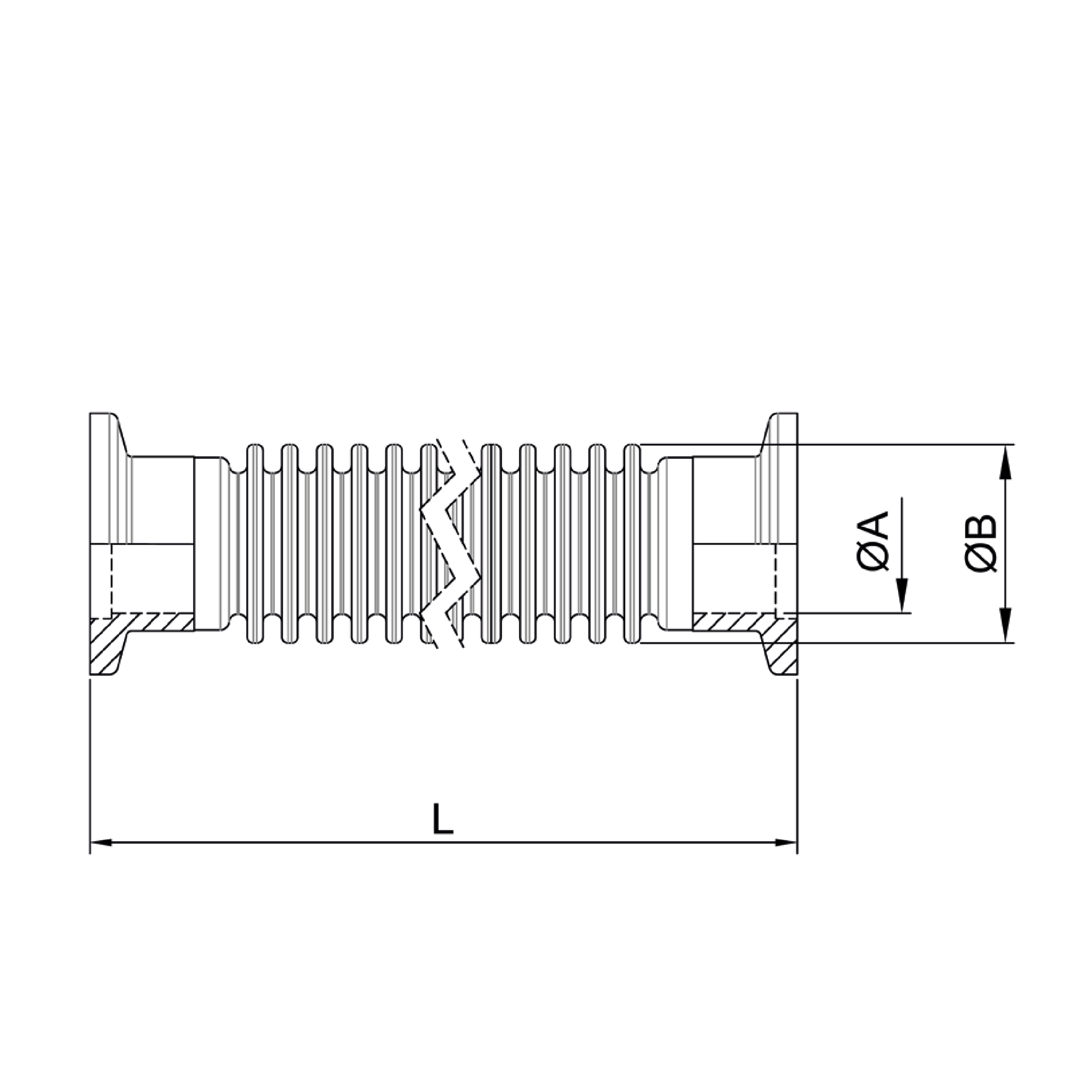

Dimension Labels	A, B and L, retained as printed in the variant tables
Listed Variants	40

Size (DN)	A (mm)	B (mm)	L (mm)	R₁ (mm)	R₂ (mm)	Order No.
16	250	16	26	26	105	VC1HSB1SS016-250
16	500	16	26	26	105	VC1HSB1SS016-500
16	750	16	26	26	105	VC1HSB1SS016-750
16	1000	16	26	26	105	VC1HSB1SS016-1000
16	1500	16	26	26	105	VC1HSB1SS016-1500
25	250	24	37	38	135	VC1HSB1SS025-250
25	500	24	37	38	135	VC1HSB1SS025-500
25	750	24	37	38	135	VC1HSB1SS025-750
25	1000	24	37	38	135	VC1HSB1SS025-1000
25	1500	24	37	38	135	VC1HSB1SS025-1500
40	250	40.5	56	59	180	VC1HSB1SS040-250
40	500	40.5	56	59	180	VC1HSB1SS040-500
40	750	40.5	56	59	180	VC1HSB1SS040-750
40	1000	40.5	56	59	180	VC1HSB1SS040-1000
40	1500	40.5	56	59	180	VC1HSB1SS040-1500
50	250	50	67	72	210	VC1HSB1SS050-250
50	500	50	67	72	210	VC1HSB1SS050-500
50	750	50	67	72	210	VC1HSB1SS050-750
50	1000	50	67	72	210	VC1HSB1SS050-1000
50	1500	50	67	72	210	VC1HSB1SS050-1500

Size (DN)	A (mm)	B (mm)	L (mm)	R₁ (mm)	R₂ (mm)	Order No.
16	250	16	26	26	105	VC1HSB2SS016-250
16	500	16	26	26	105	VC1HSB2SS016-500
16	750	16	26	26	105	VC1HSB2SS016-750
16	1000	16	26	26	105	VC1HSB2SS016-1000
16	1500	16	26	26	105	VC1HSB2SS016-1500
25	250	24	37	38	135	VC1HSB2SS025-250
25	500	24	37	38	135	VC1HSB2SS025-500
25	750	24	37	38	135	VC1HSB2SS025-750
25	1000	24	37	38	135	VC1HSB2SS025-1500
25	1500	24	37	38	135	VC1HSB2SS025-1000
40	250	40.5	56	59	180	VC1HSB2SS040-250
40	500	40.5	56	59	180	VC1HSB2SS040-500
40	750	40.5	56	59	180	VC1HSB2SS040-750
40	1000	40.5	56	59	180	VC1HSB2SS040-1000
40	1500	40.5	56	59	180	VC1HSB2SS040-1500
50	250	50	67	72	210	VC1HSB2SS050-250
50	500	50	67	72	210	VC1HSB2SS050-500
50	750	50	67	72	210	VC1HSB2SS050-750
50	1000	50	67	72	210	VC1HSB2SS050-1000
50	1500	50	67	72	210	VC1HSB2SS050-1500
