ISO-KF Reducer Cross

Field	Data

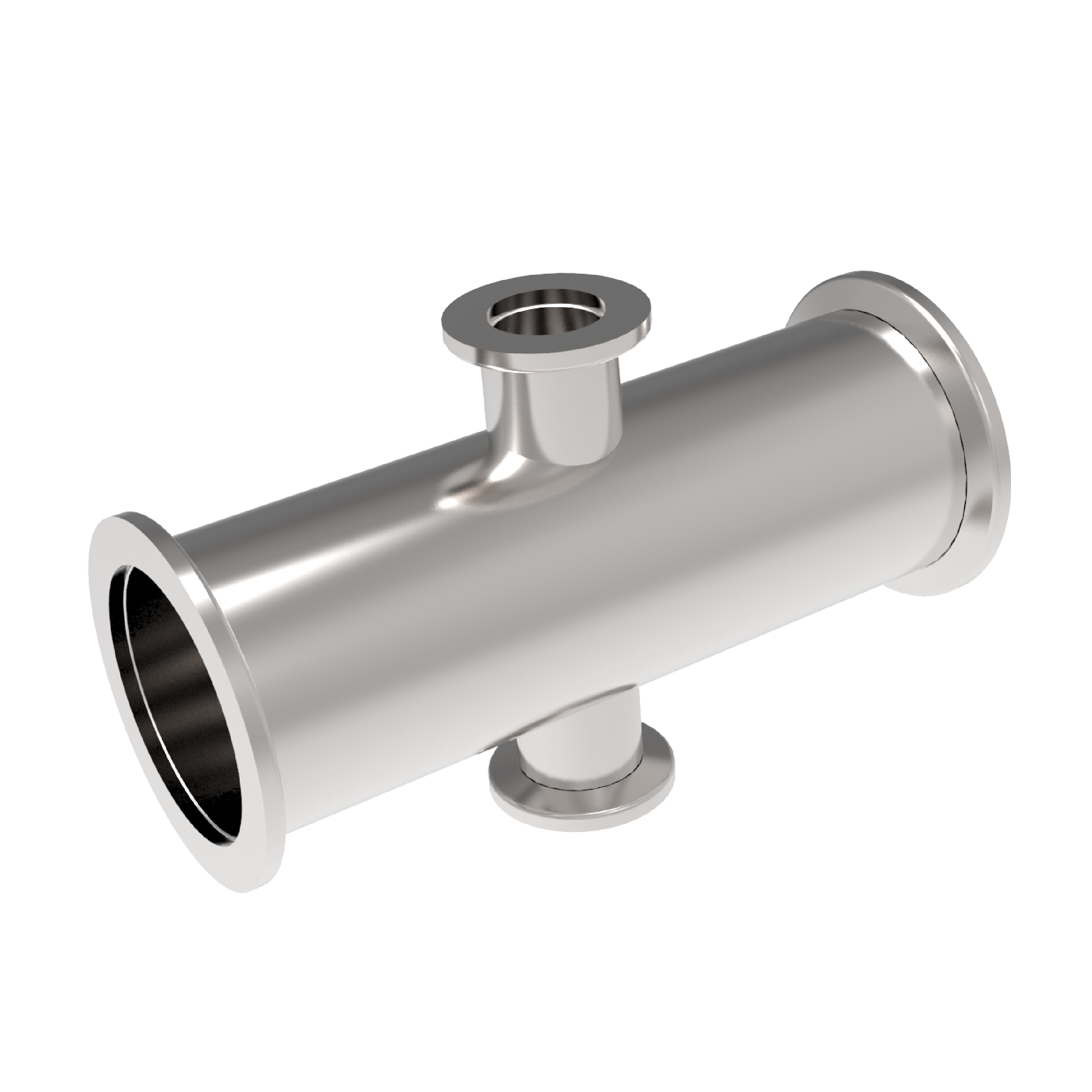

Product Name	ISO-KF Reducer Cross
System	ISO-KF
Product Type	Reducer Cross
Function	Cross fitting with reduced branch sizes for ISO-KF vacuum lines
Pressure Range - Elastomer Seal	1 × 10⁻⁸ mbar to 500 mbar over pressure
Pressure Range - Metal Seal	1 × 10⁻⁹ mbar to 500 mbar over pressure
Material Versions	Stainless Steel 304 / 1.4301, Stainless Steel 316L / 1.4404
Available Main Sizes (DN)	25, 40, 50
Available Reducer Sizes (DN)	16, 25, 40

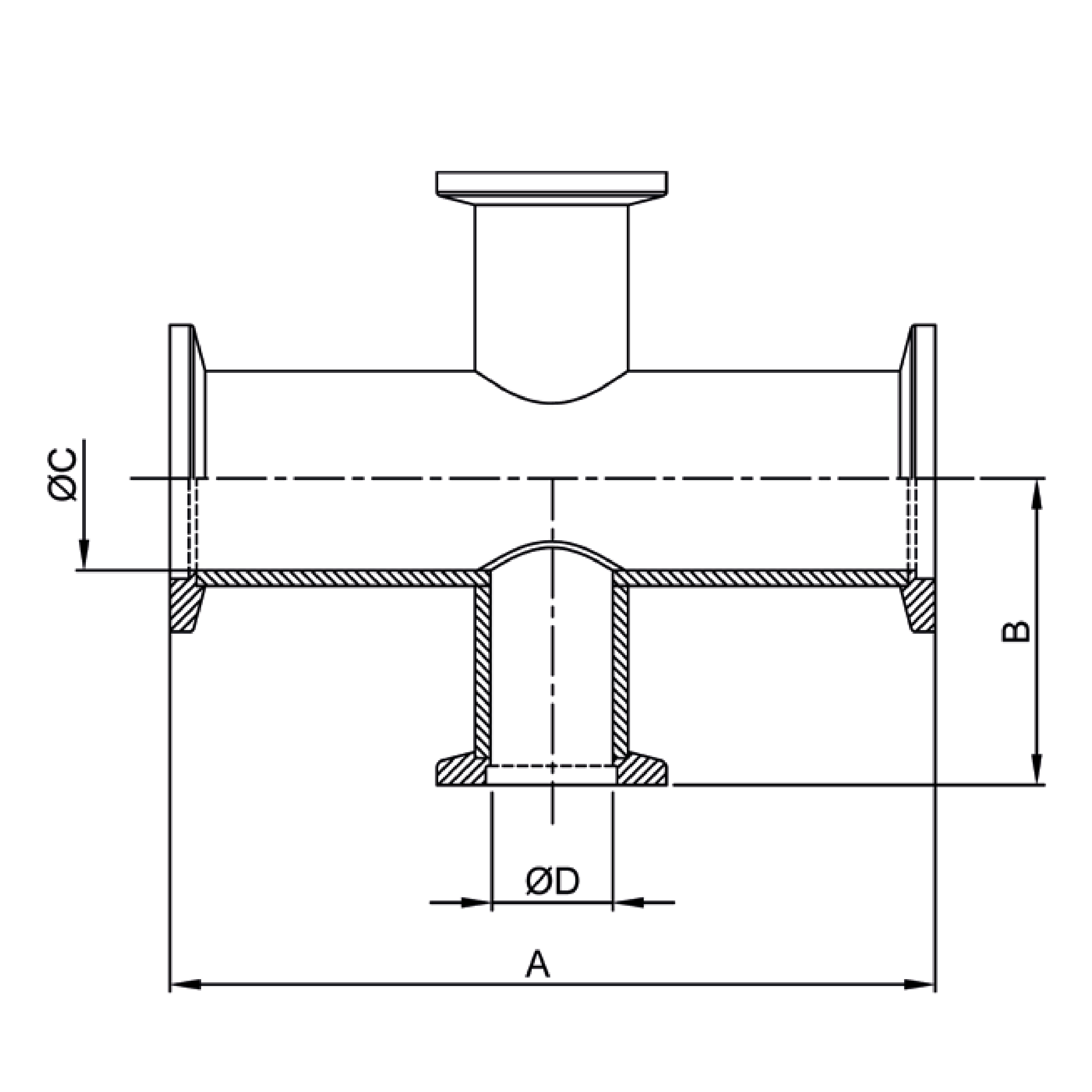

Main Dimensions	A, B, C, D
Temperature Range - Stainless Steel 304 / 1.4301	-196 to 300 °C
Temperature Range - Stainless Steel 316L / 1.4404	-196 to 350 °C

Size (DN)	Size Reducer (DN)	A (mm)	B (mm)	C (mm)	D (mm)	Order No
25	16	100	40	24	16	VC1FTR1SS025-016-100
40	16	130	40	40.5	16	VC1FTR1SS040-016-130
40	25	130	50	40.5	24	VC1FTR1SS040-025-130
50	16	140	40	50	16	VC1FTR1SS050-016-140
50	25	140	50	50	24	VC1FTR1SS050-025-140
50	40	140	65	50	40	VC1FTR1SS050-040-140

Size (DN)	Size Reducer (DN)	A (mm)	B (mm)	C (mm)	D (mm)	Order No
25	16	100	40	24	16	VC1FTR2SS025-016-100
40	16	130	40	40.5	16	VC1FTR2SS040-016-130
40	25	130	50	40.5	24	VC1FTR2SS040-025-130
50	16	140	40	50	16	VC1FTR2SS050-016-140
50	25	140	50	50	24	VC1FTR2SS050-025-140
50	40	140	65	50	40	VC1FTR2SS050-040-140
